Two Heads Glue Dispensing Machine 220V Auto Dispenser Machine For Led Bulb Production

two dispensing heads with 8 rotating station glue dispensing machine for LED bulb production

Machine description

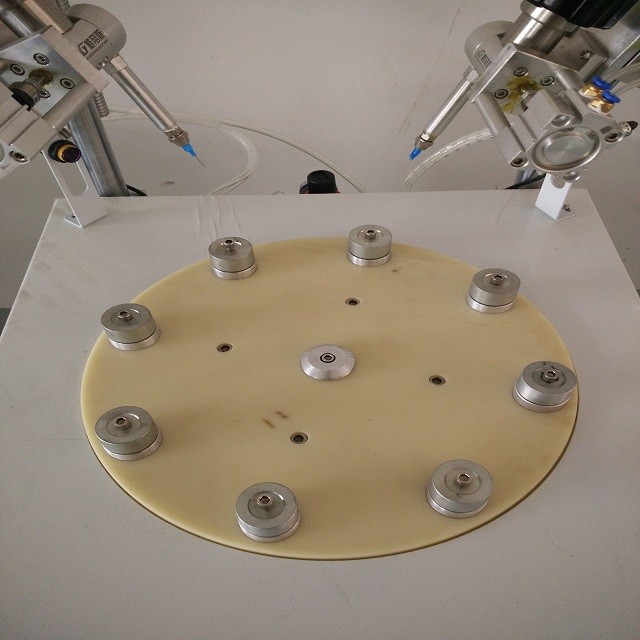

This automated glue application system uses a rotating platform divided into eight equally spaced positions. The smart rotating mechanism turns precisely by a quarter-circle (90 degrees) each time, efficiently moving two workpieces at once into position under the glue nozzle.

The system's clever design ensures smooth, steady rotation that spreads adhesive evenly around circular parts. By always moving two pieces simultaneously (placed opposite each other on the platform), it doubles productivity compared to single-piece systems while maintaining high positional accuracy.

Key advantages:

1. Efficient movement: Turns exactly 90° each cycle, aligning new parts every few seconds

2. Consistent quality: Controlled rotation speed creates uniform glue patterns

3. Double capacity: Processes two items per cycle without quality loss

4. Smart timing: Automatic adjustments for different glue types and drying needs

5. Stable operation: Balanced design prevents wobbling during rotation

The eight-position circle layout allows continuous workflow - operators can load/unload parts at one station while others are being coated. This setup is ideal for manufacturing ring-shaped products requiring full-edge bonding, combining speed with reliable results.

Machine features

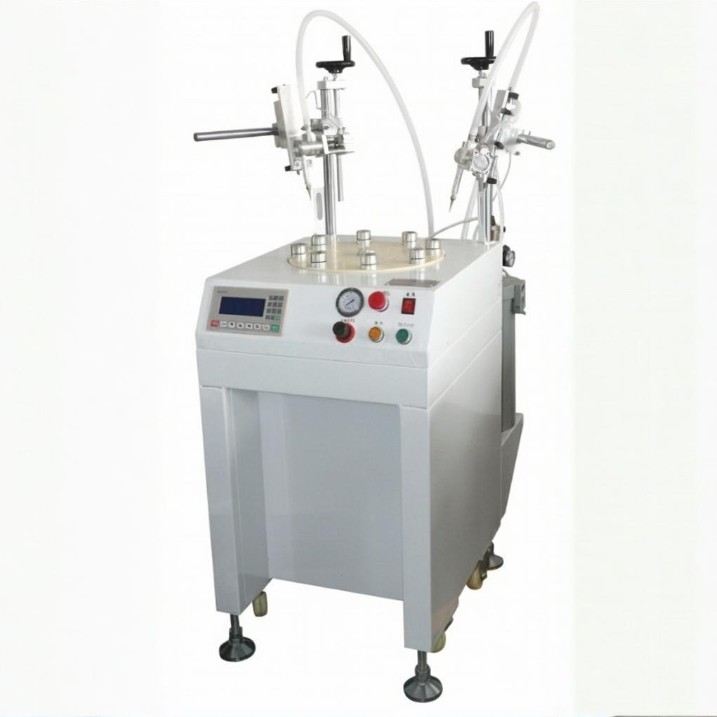

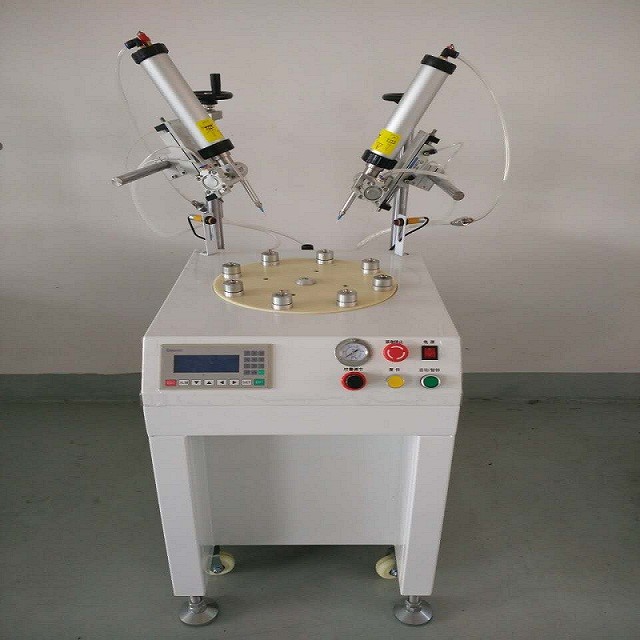

• Floor stand design with caster, the machine is stable and easy to move;
• Eight stations work in cycle with two glue dispensing system, the designed capacity is over 2000pcs/h;
• Equipped work piece detector to decide gluing or skip for each system;
• Gluing track can be set as full circle, single point or segmented arc etc.
• Working mode can be two-station, four-station or eight-station;
• easy to learn and operate with easy text display, for different glue with different settings ensure the best performance.

Technical parameters

Machine details
