LED A-bulb production tool two-in-one automatic glue dispening machine and PCB punching machine
Machine description
This two-in-one machine is a game-changer for making LED T-bulbs. It combines two important steps—punching PCB plate and applying glue—into one smart system, saving time and improving quality. LED T-bulbs need punching PCB mid-plate to keep it inside the housing stable and silicone glue to hold parts like the diffuser in place.
In older factories, punching and gluing were done separately, which took longer, caused alignment mistakes, and wasted space. This new machine fixes those problems by doing both jobs at once. For example, it quickly punches PCB and then applies the exact amount of glue needed to seal the diffuser, all in perfect sync. It uses computer-controlled motors and sensors to work accurately, reducing errors and material waste.
The machine is also flexible: it can handle different sizes and shapes of LED T-bulbs, making it perfect for small or custom orders.
Why is it better?
-
Faster production: Cuts work time by 30–50% compared to using separate machines.
-
Less glue waste: A smart glue system stops over-spilling, saving up to 20% on adhesive costs.
-
Easy to use: Simple controls and a compact design help workers learn quickly and fit it into existing production lines.
-
Low maintenance: Self-sharpening tools in the punching module mean fewer repairs.
By combining two steps into one, this machine not only speeds up production but also supports eco-friendly manufacturing by using less energy and materials. For LED bulb makers, it’s a must-have tool to stay competitive while keeping quality high.
Machine features
- Floor stand design with caster, the machine is stable and easy to move;
- Integrate punching and gluing process, work in cycle, the designed capacity is 1000pcs/h;
- Equipped with work piece detector to decide working or skipping
- Gluing track can be set as full circle, single point or segmented arc etc.
- Working mode can be two-station, four-station or eight-station;
- easy to learn and operate with test display, for different glue with different settings ensure the best performance.
Technical parameters
| Model | JCD-80 |
| MCU | Industrial PLC |
| Programming | Text Demonstration Programmer |
| Drive mode | Precise Stepping Motor |
| Max Dispensing Diameter | 280mm(two-station), 200mm(four -station), 110mm(eight-station) |
| Motor Speed | 0 ~ 300 RPM |
| Positioning Accuracy | ±0.1mm |
| Z-axis Adjust Range | 250mm |
| Z-axis Working Travel | 50mm |
| Dimension (L*W*H) | L680mm*W700mm*H1520mm |
| Weight | 190Kg |
| Working Power | AC220V/50～60Hz/200W |
| Working Air Pressure | 0.4~ 0.6Mpa(no condensation) |
| Working Temperature and Humidity | Temperature: 0~40℃ Humidity: 20~90% |

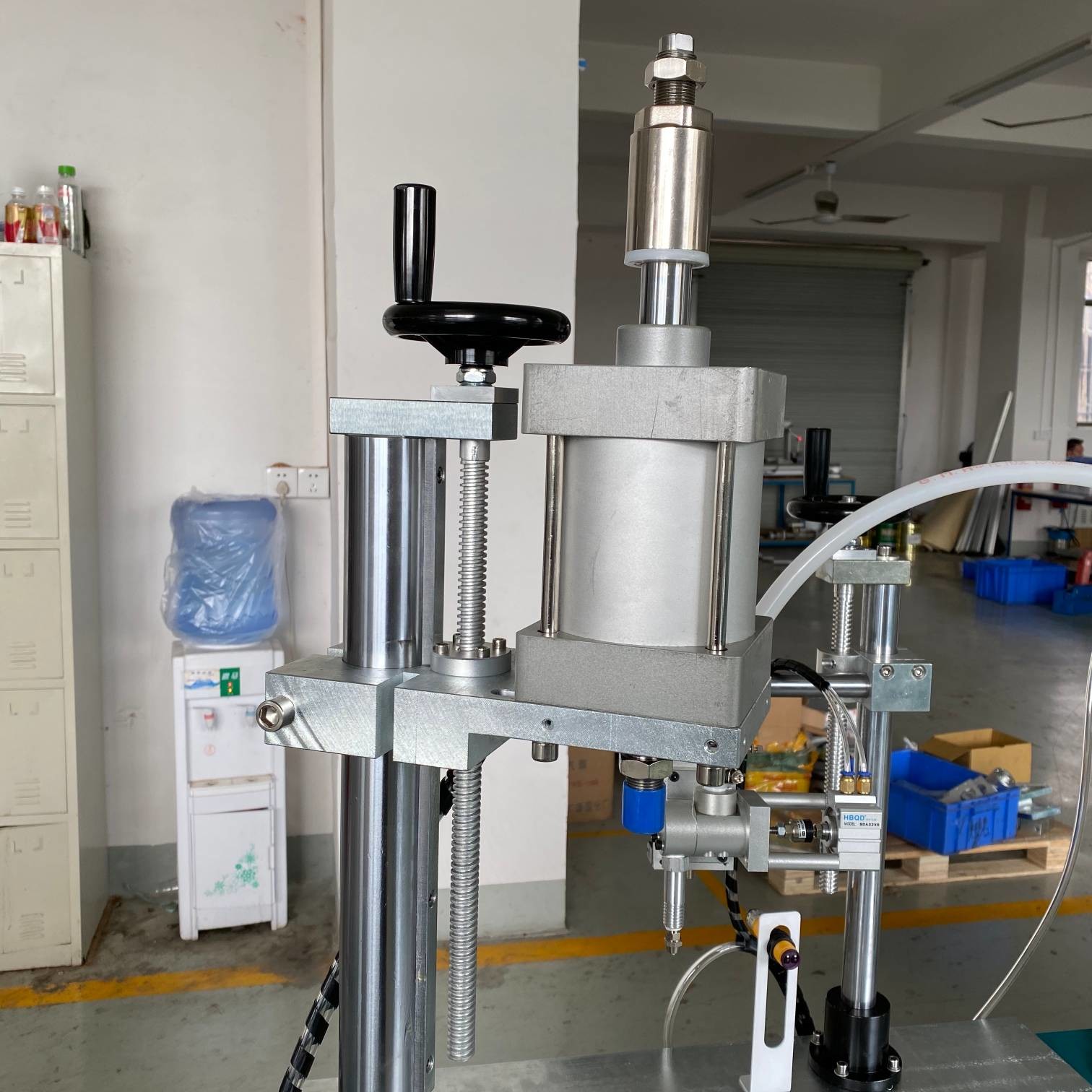

Machine details
