Round Auto Glue Dispenser 150W Automatic Silicone Dispenser 50Hz - 60Hz

Product Categories

Zhongshan GDS Automation Equipment Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : GDS

Model Number : JD-10

Certification : CE

Place of Origin : CHINA

MOQ : 1 PIECE

Price : CONTACT US

Supply Ability : 30 Pieces/Month

Delivery Time : 7 working days

Packaging Details : polywood case

Name : Auto Glue Dispenser

Application : round products

Function : dispensing silicone

After-sales Service Provided : on-line or on-site

warranty : 1 year

package : plywood case

Contact Now

round glue dispensing machine for silicone adhesive automatic applying on big size round product

Machine description

This is a speacial glue dispensing machine designed for big size round product which requires glue application on the

edage for bonding or other purpose. As long as your product need to be applied a round shape glue path, this machine

may satisfy your needs in a fast and convenient manner. We can design fixture based on the dimension of the product. the

motor drives the fixture to rotate for designed round gluing track. It is capable of using 300ml package silicone or 2600ml

package silicone.

Machine features

Specially designed for big size round products;
Gluing track can be set as full circle, single point, segmented arc etc.;
Equipped unique suck-back valve to guarantee fast glue flow and no drops or leakage;
It is easy to learn and operate with touch screen and buttons, for different glue with different settings ensure the best performance;

Round Auto Glue Dispenser 150W Automatic Silicone Dispenser 50Hz - 60Hz

Technical parameters

Model	JD-10
MCU	Industrial PLC
Programming	Text Demonstration Programmer
Drive Mode	Precise Stepping Motor
Max Dispensing Diameter	400mm
Motor Speed	0 ~300RPM
Positioning Accuracy	±0.1mm
Z-axis Adjust Range	250mm
Z-axis Working Travel	50mm
Dimension(LWH)	420mm532mm532mm
Weight	28Kg
Working Power	AC220V/50～60Hz/150W
Working Air Pressure	0.4~ 0.6Mpa(no condensation)
Working Temperature and Humidity	Temperature: 0~40℃,Humidity: 20~90%

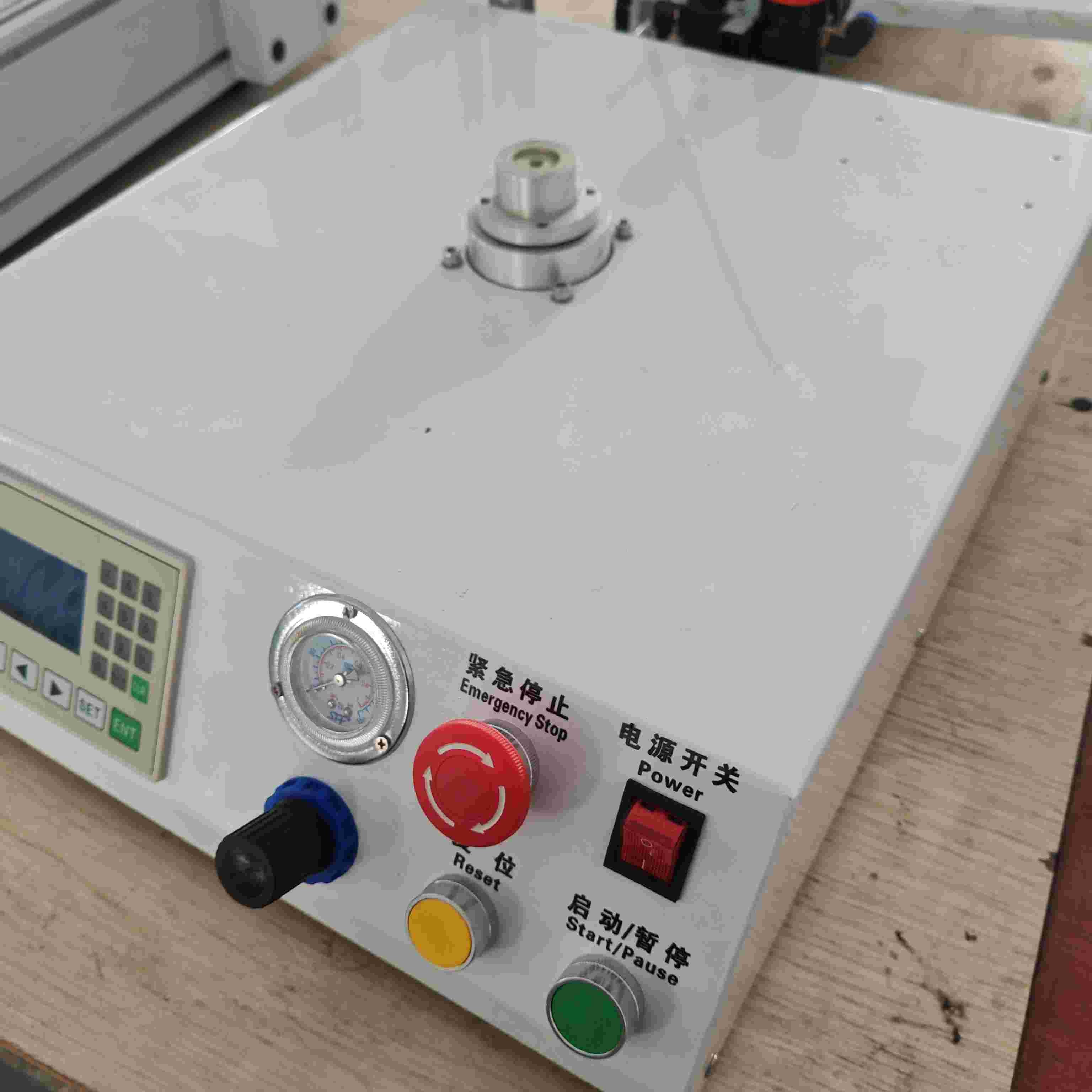

Machine details

Round Auto Glue Dispenser 150W Automatic Silicone Dispenser 50Hz - 60Hz
