1200*800MM 3 Axis Dispensing Robot 50Hz - 60Hz Robotic Glue Dispensing

Brand Name : GDS

Model Number : HTD-1280

Certification : CE

Place of Origin : CHINA

MOQ : 1 PIECE

Price : CONTACT US

Payment Terms : T/T

Supply Ability : 30PCS/mon

Delivery Time : 10 days

Packaging Details : plywood case

name : 3 Axis Dispensing Robot

function : dispensing silicone

Application : mirror light

Warranty : 1 year

After-sales service : on-line or on-site

EXW report : test video available

Contact Now

mirror light frame bonding done by automatic 3 axis glue dispensing robot

Machine Description

The integration of automatic 3-axis glue dispensing robots in mirror light frame bonding represents a significant advancement in precision manufacturing. These robotic systems enable high-accuracy adhesive application for assembling delicate optical components, ensuring consistent bonding strength and alignment tolerance. Equipped with programmable motion control, the 3-axis configuration (X, Y, Z) allows complex path planning to accommodate various frame geometries while maintaining uniform glue dispersion across curved or angular surfaces.

The process typically employs silicone adhesive with optimized refractive indices to minimize light scattering at bonded interfaces.

Modern implementations often combine the dispensing robot with automated workholding fixtures and in-line curing stations, achieving production speeds exceeding 120 frames per hour with ≤0.1% defect rates (case by case)

This technology addresses traditional challenges in manual bonding operations, particularly in eliminating human-induced variability and achieving repeatable results under cleanroom manufacturing conditions. Recent developments incorporate machine learning algorithms to predict adhesive flow patterns and automatically compensate for material shrinkage during curing‌

1200*800MM 3 Axis Dispensing Robot 50Hz - 60Hz Robotic Glue Dispensing

Machine Features

Floor stand design with wide working range(1200*800MM), suitable for big size work-piece;
Equipped hand programming controller, easy to learn and operate;
The instructions can be copied and arrayed;
Equipped industrial PLC controller, for different glue with different settings ensure the best performance;
Glue flow is stable without leakage and drawing.

Technical Parameters

model	HTD-1280
MCU	3 axis movement controller
programming	teaching programming
drive mode	Precise Stepping Motor+ Synchronous Belt+ Linear Guide-way
Working Range(XYZ)	1200800100mm
Max Moving Speed	MAX 500mm/sec
Repeat Accuracy	±0.02mm
Program Memory Capacity	Program Memory Capacity
Working Power	AC220V/50～60Hz/150W
Working Air Pressure	0.4 ~ 0.6Mpa(no condensation)
Working Temperature and Humidity	Temperature: 0 ~ 40℃ Humidity:20 ~ 90%

Glue applicable

300ml package silicone or 2600ml package silicone

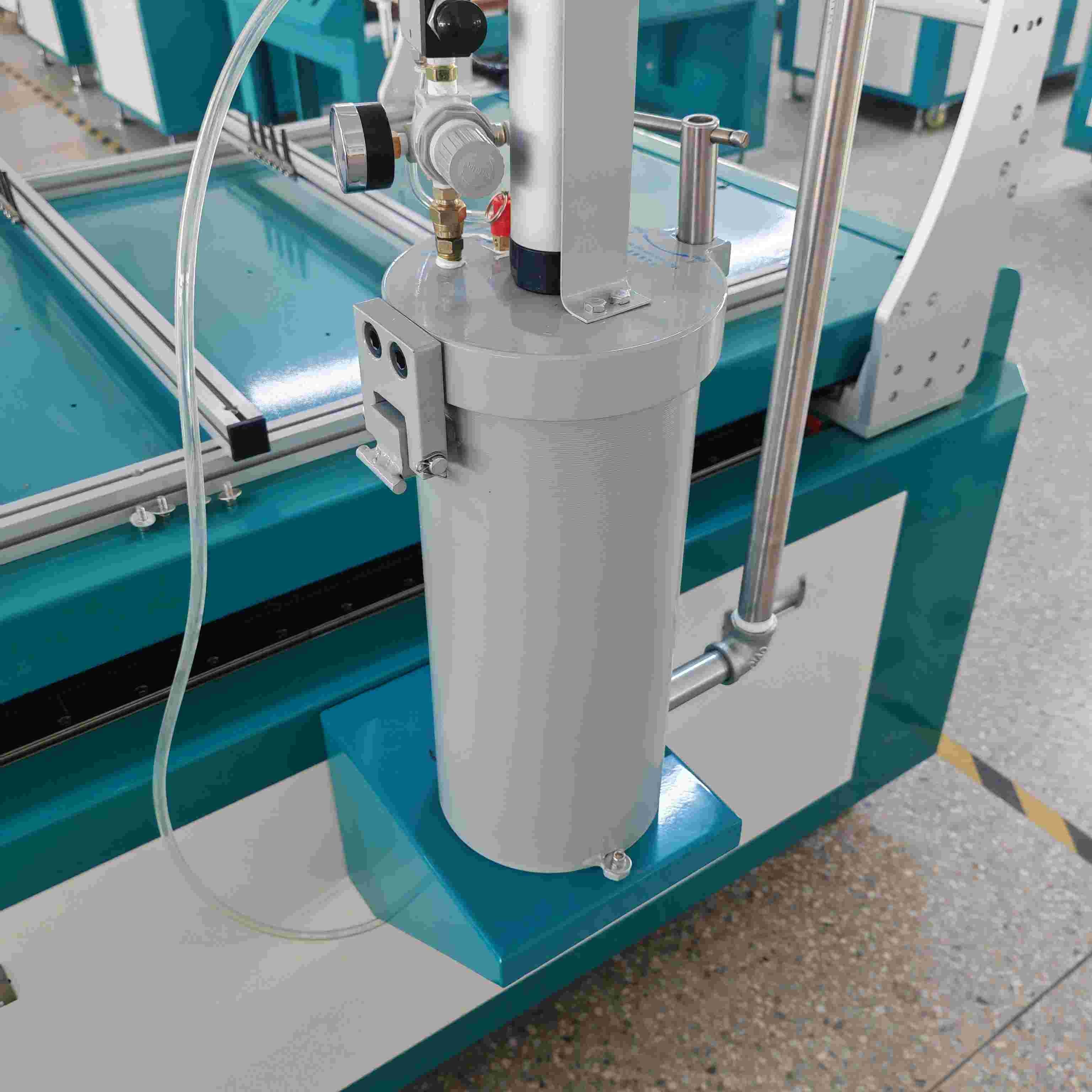

Machine Details

1200*800MM 3 Axis Dispensing Robot 50Hz - 60Hz Robotic Glue Dispensing
