150W Glue Dispensing Robot 0.4Mpa - 0.6Mpa Glue Dispenser Machine For Electric Oven

Brand Name : GDS

Model Number : TD-1560

Certification : CE

Place of Origin : CHINA

MOQ : 1 PIECE

Price : CONTACT US

Payment Terms : T/T

Supply Ability : 30PCS/mon

Delivery Time : 10 days

Packaging Details : plywood case

name : Glue Dispensing Robot

function : dispensing silicone

Application : oven

Warranty : 1 year

After-sales service : on-line or on-site

EXW report : test video available

Contact Now

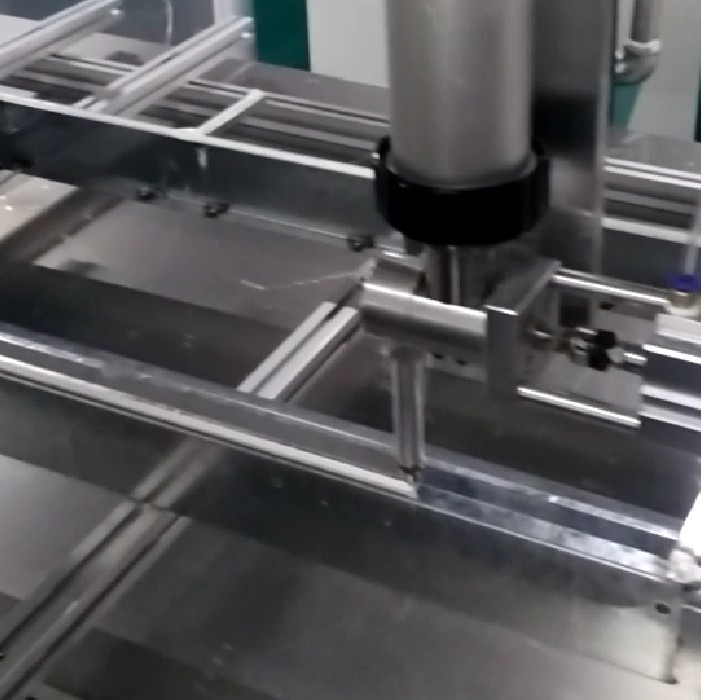

electric oven adhesive application by automatic glue dispensing robot production

Machine Description

No matter home applicances or commercial use oven, the assembly process includes many adhesive application, like the tempered glass cover, the frame and oven body bonding etc. GDS automatic glue dispensing robot works as a practical glue dispensing tool to get different shape glue application shape for different points bonding. The glue dispensing machine working platform is big enough to hold most size oven parts. Glue feeding system can be 300ml small tube, or 2600ml package, even 5-gallon package is also ok to reduce glue refilling frequency. Flexible programming makes multi-functional use possible.

150W Glue Dispensing Robot 0.4Mpa - 0.6Mpa Glue Dispenser Machine For Electric Oven

Machine Features

replace manual silicone application
quick silicone or adhesive apply for oven parts
glue flow control is stable without leakage and drawing.
get better water-proof and bonding performance
equipped with small hand programming controller
equipped industrial PLC controller, for different glue with different settings ensure the best performance;
make the gluing process easy to accelerate
can fit for different brand silicone in 300ml package or 2600ml package or even 5-gallon feeding system
floor-stand design with wide working range(1500*600MM), fit for small and big size work-piece;

Technical Parameters

model	TD-1560
MCU	3 axis movement controller
programming	teaching programming
drive mode	Precise Stepping Motor+ Synchronous Belt+ Linear Guide-way
Working Range(XYZ)	1500600100mm
Max Moving Speed	MAX 500mm/sec
Repeat Accuracy	±0.02mm
Program Memory Capacity	Program Memory Capacity
Dimension(LWH)	22008001200mm
Working Power	AC220V/50～60Hz/150W
Working Air Pressure	0.4 ~ 0.6Mpa(no condensation)
Working Temperature and Humidity	Temperature: 0 ~ 40℃ Humidity:20 ~ 90%

Glue applicable
300ml package silicone or 2600ml package silicone
