Floor Stand Automatic Glue Dispenser Round Glue Dispensing System 200W For LED Bulb

Packaging Details : PLYWOOD CASE

Supply Ability : 30PCS/MONTH

Price : CONTACT US

Brand Name : GDS

Model Number : JD-80

Certification : CE

Place of Origin : CHINA

MOQ : 1PIECE

Payment Terms : T/T

Delivery Time : 7 WORKING DAYS

Name : Automatic Glue Dispenser

Application : LED bulb

Function : dispensing/filing glue

After-sales Service : On-line

Warranty : 1 Year

EXW report : test video available

Contact Now

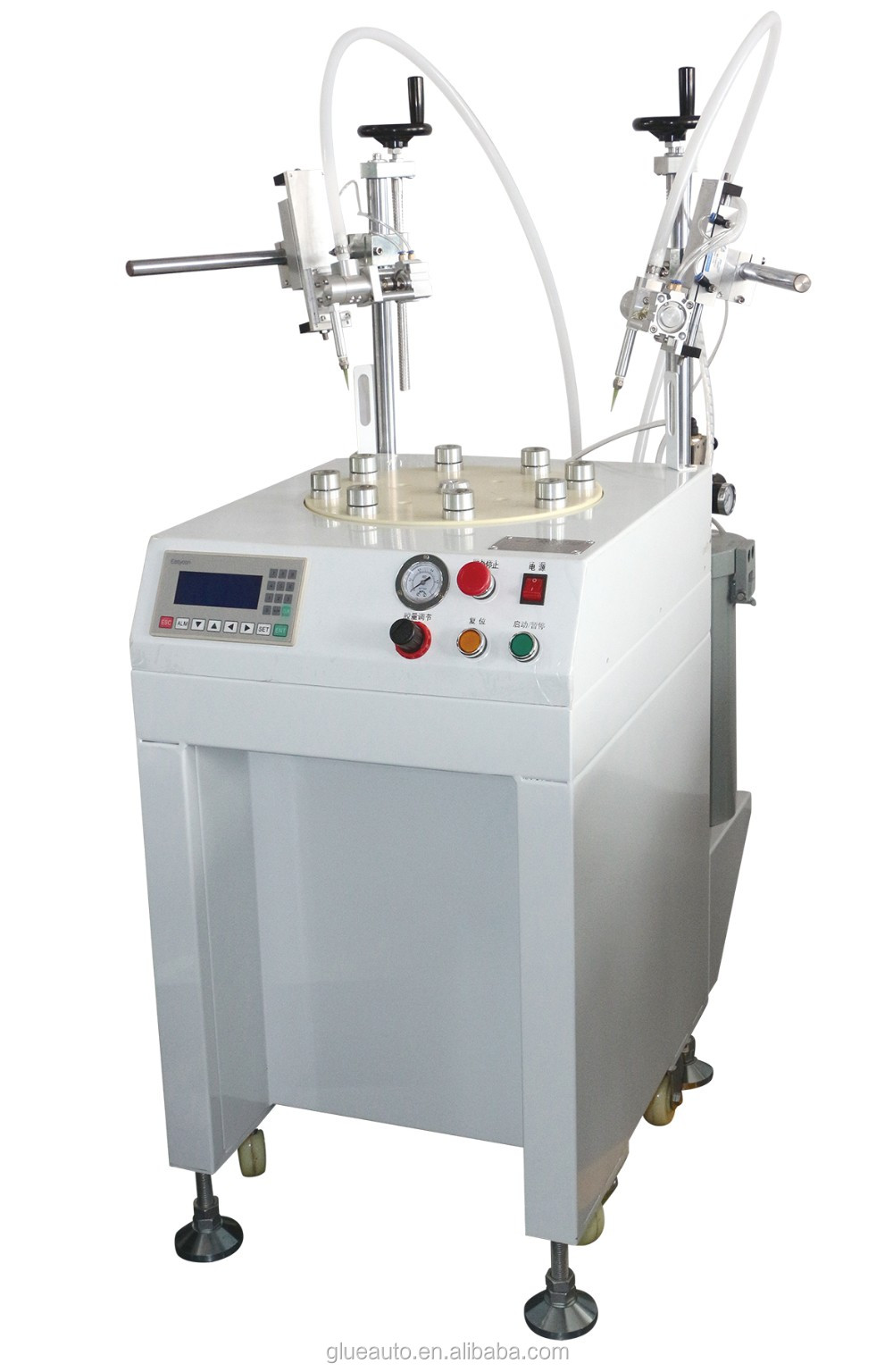

Automatic Glue Dispenser Machine for led bulb candle light round shape products

Principle Description

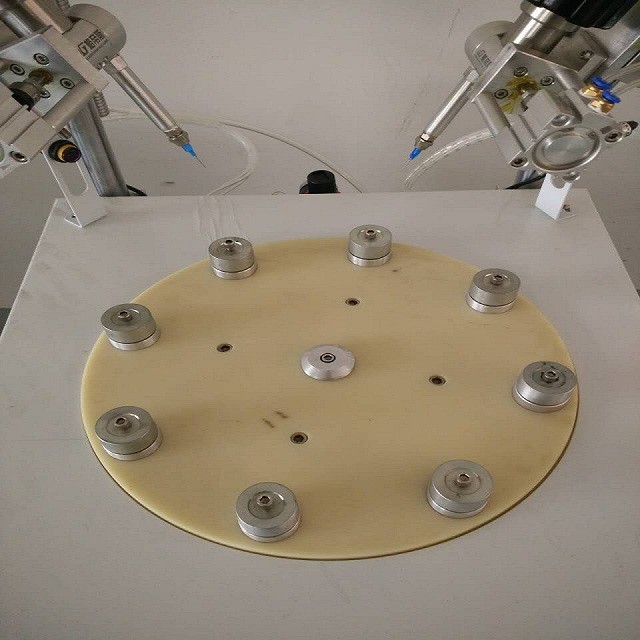

Eight stations are distributed on the revolution disc by 45 degree. The revolution motor rotates 90 degree each time to bring two work-pieces to the gluing nozzle. Auto-revolution motor drives two work-pieces rotating in average speed to achieve evenly glue coating.

Machine Features

Floor stand design with caster, the machine is stable and easy to move;
Eight stations work in cycle with two glue dispensing system, the designed capacity is 1500~2000pcs/h;
Equipped work piece detector to decide gluing or skip for each system;
Gluing track can be set as full circle, single point or segmented arc etc.
Working mode can be two-station, four-station or eight-station;
It is easy to learn and operate with touch screen and buttons, for different glue with different settings ensure the best performance.

Technical Parameters

Model	JD-80
MCU	Industrial PLC
Programming	Text Demonstration Programmer
Drive mode	Precise Stepping Motor
Max Dispensing Diameter	280mm(two-station), 200mm(four -station), 110mm(eight-station)
Motor Speed	0 ~ 300 RPM
Positioning Accuracy	±0.1mm
Z-axis Adjust Range	250mm
Z-axis Route	50mm
Dimension (LWH)	500mm850mm1300mm
Weight	50Kg
Working Power	AC220V/50~60Hz/200W
Working air pressure	0.4~ 0.6Mpa(no condensation)
Working Temperature and Humidity	Temperature: 0~40℃,Humidity: 20~90%

Suitable Glue:300ml/2600ml single-component package for silicone, thermal-conductive silicone grease, UV glue, AB glue etc.

Applications:Round lights, such as LED bulbs, candle light, T8 glass tube cap, round panel light, PAR light etc.

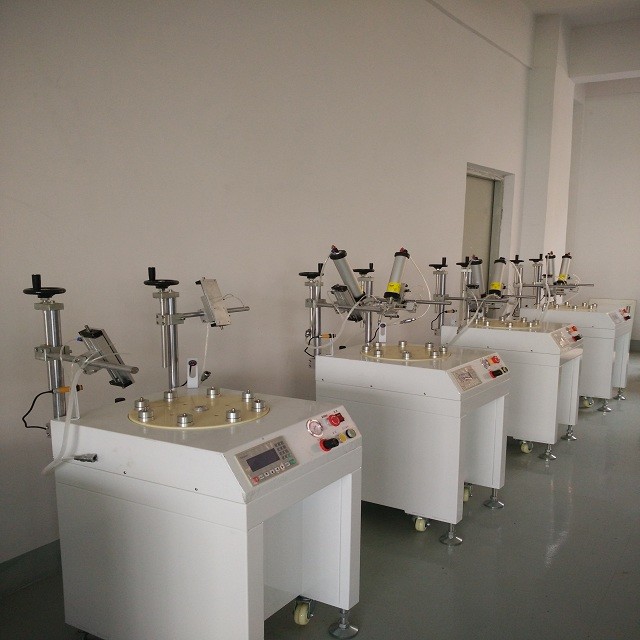

Machine Details

Floor Stand Automatic Glue Dispenser Round Glue Dispensing System 200W For LED Bulb

Product Tags:

Floor Stand Automatic Glue Dispenser Round Glue Dispensing System 200W For LED Bulb Images
