200W Auto Glue Dispenser 220V LED Bulb Automatic Punching Machine Industrial

Product Categories

Zhongshan GDS Automation Equipment Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Packaging Details : PLYWOOD CASE

Supply Ability : 30PCS/MONTH

Price : CONTACT US

Brand Name : GDS

Model Number : JCD-80

Certification : CE

Place of Origin : CHINA

MOQ : 1PIECE

Payment Terms : T/T

Delivery Time : 10 WORKING DAYS

Name : Auto Glue Dispenser

Application : LED bulb

Function : punching and gluing

EXW report : test video available

After-sales Service : On-line

Warranty : 1 Year

Contact Now

T bulb punching machine and gluing machine with high capacity eight station glue dispenser for high power bulb

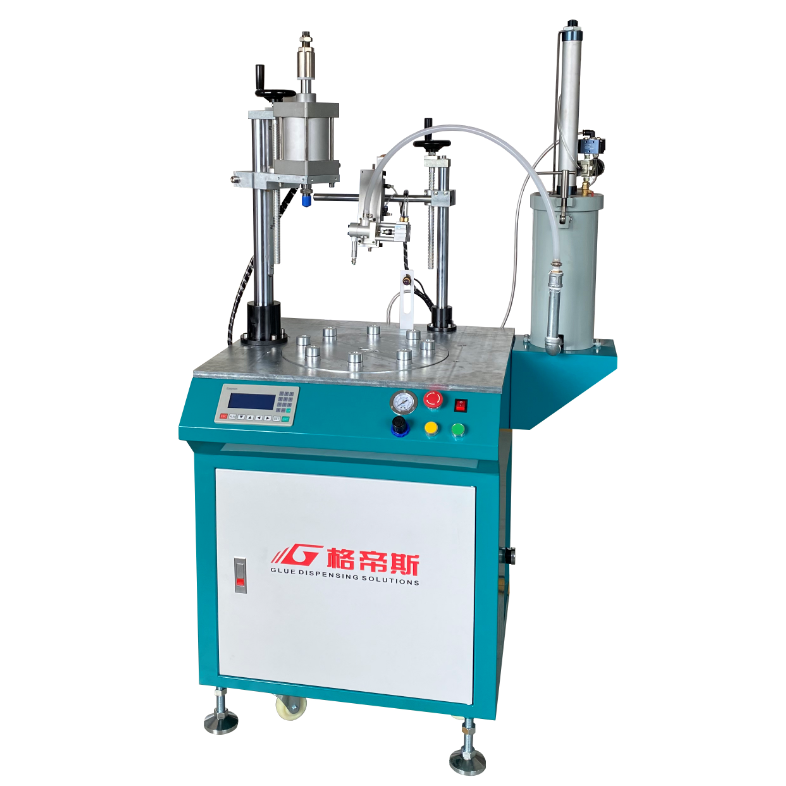

200W Auto Glue Dispenser 220V LED Bulb Automatic Punching Machine Industrial

Machine Features

Floor stand design with caster, the machine is stable and easy to move;
Integrate punching and gluing process, work in cycle, the designed capacity is 1000pcs/h;
Equipped with work piece detector to decide working or skipping
Gluing track can be set as full circle, single point or segmented arc etc.
Working mode can be two-station, four-station or eight-station;
It is easy to learn and operate with touch screen and buttons, for different glue with different settings ensure the best performance.

Technical Parameters

Model	JCD-80
MCU	Industrial PLC
Programming	Text Demonstration Programmer
Drive mode	Precise Stepping Motor
Max Dispensing Diameter	280mm(two-station), 200mm(four -station), 110mm(eight-station)
Motor Speed	0 ~ 300 RPM
Positioning Accuracy	±0.1mm
Z-axis Adjust Range	250mm
Z-axis Working Travel	50mm
Dimension (LWH)	L680mmW700mmH1520mm
Weight	190Kg
Working Power	AC220V/50~60Hz/200W
Working Air Pressure	0.4~ 0.6Mpa(no condensation)
Working Temperature and Humidity	Temperature: 0~40℃ Humidity: 20~90%

Suitable Glue: 300ml/2600ml single-component package for silicone

Applications: LED bulb

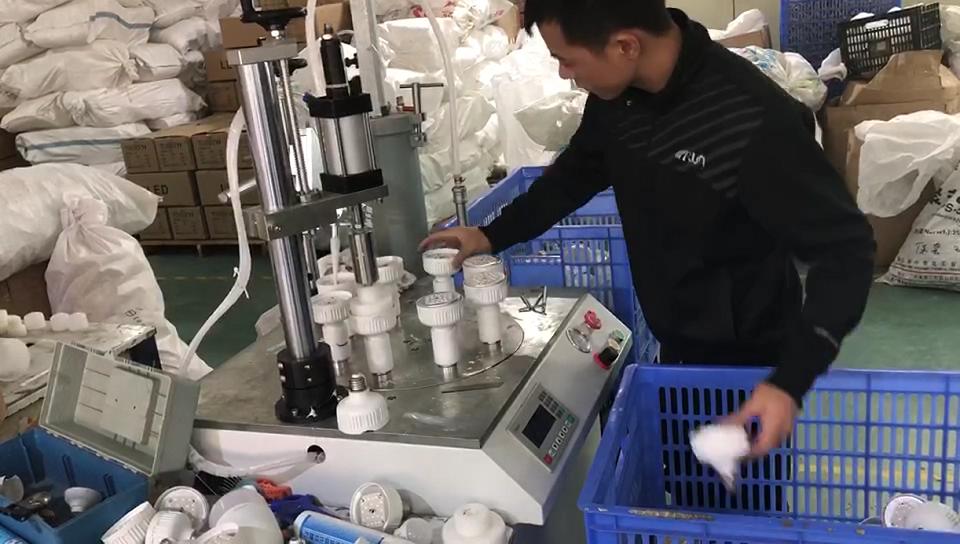

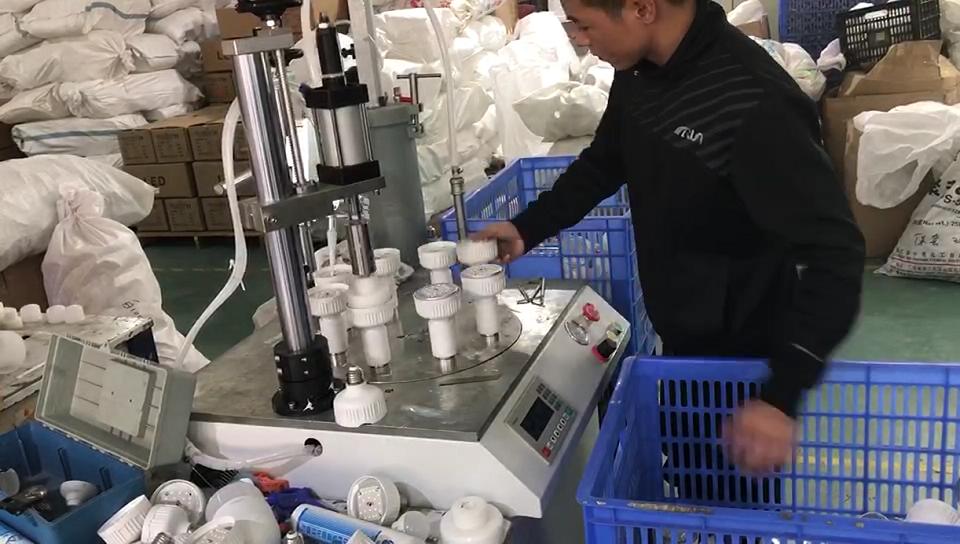

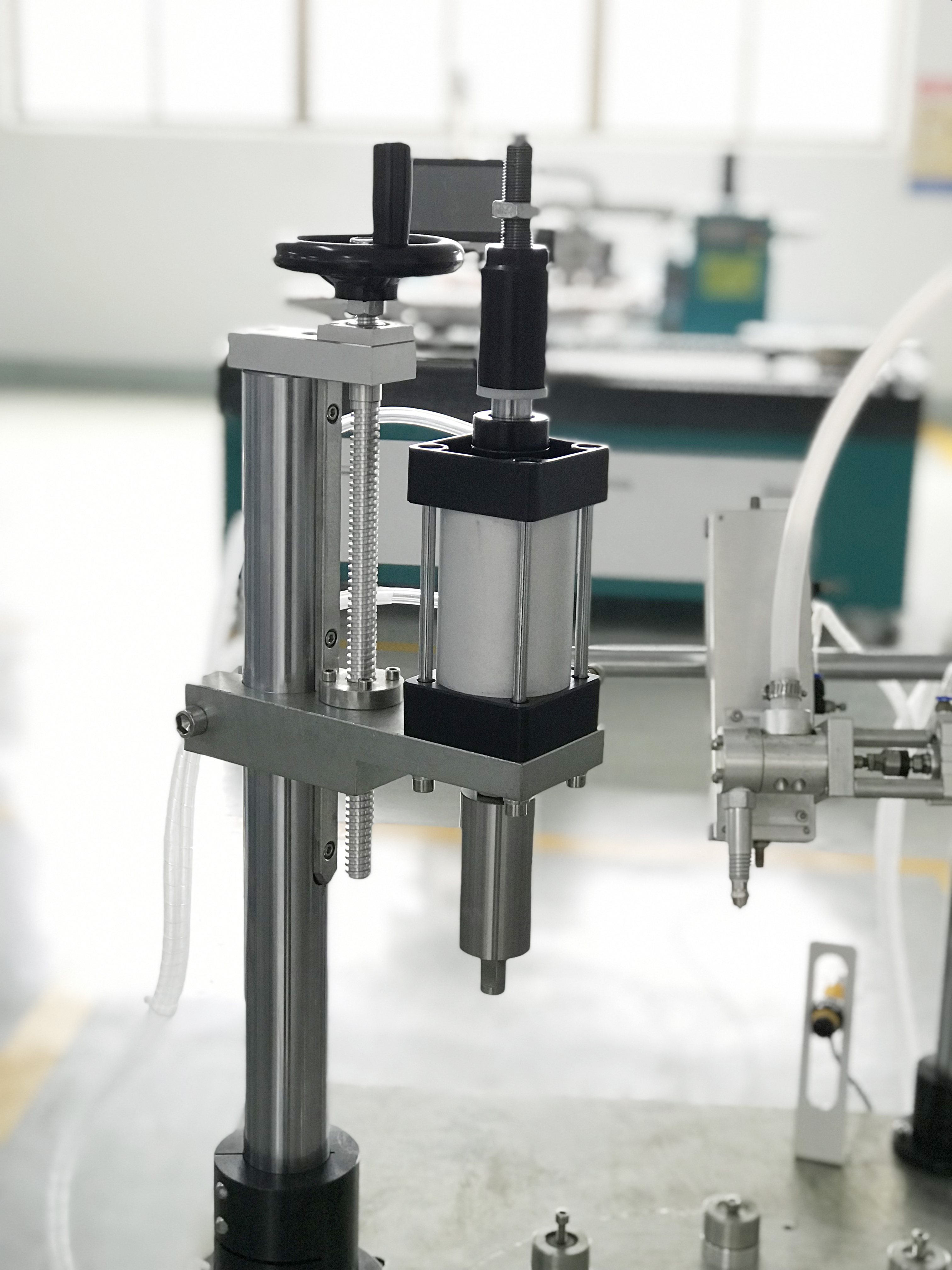

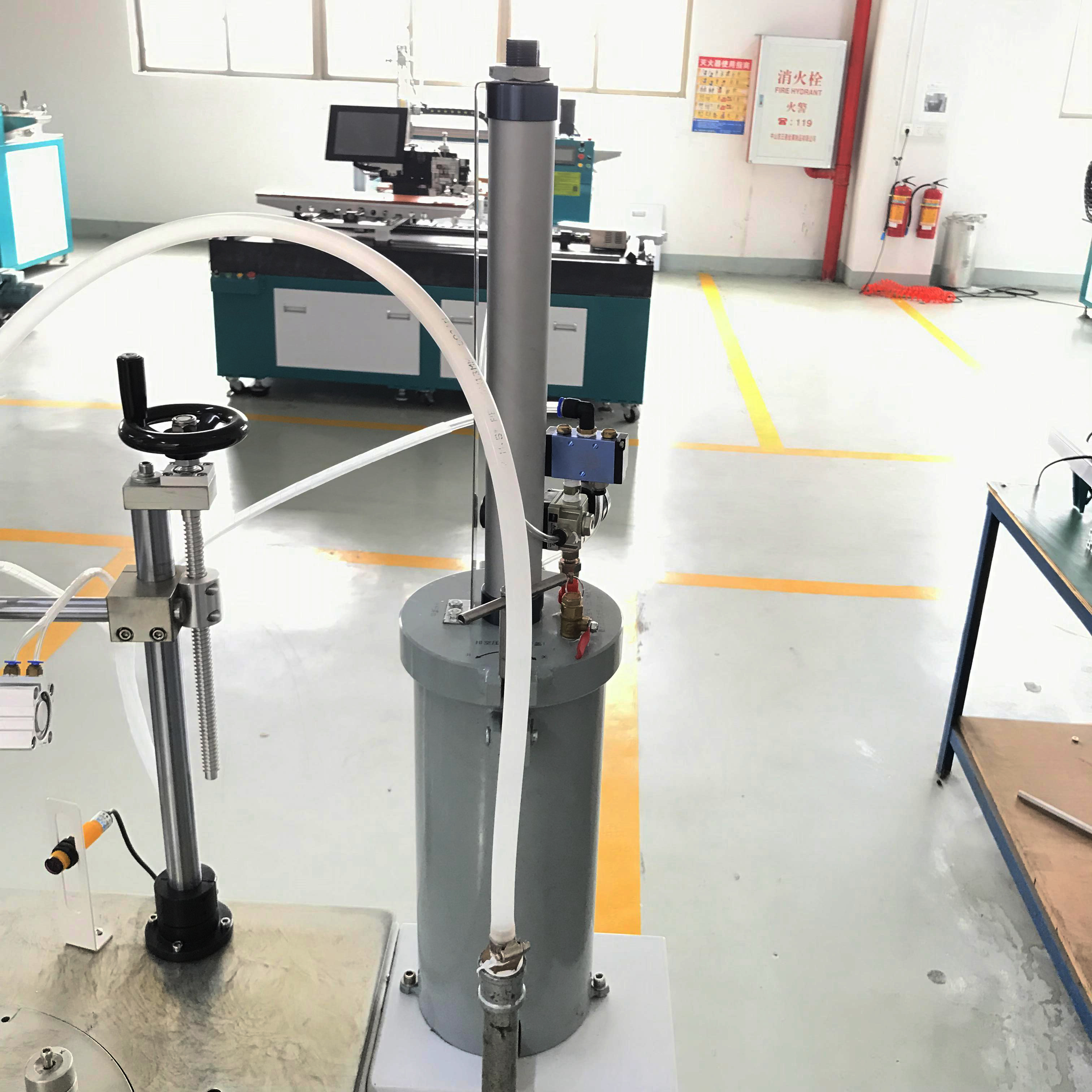

Machine Details

200W Auto Glue Dispenser 220V LED Bulb Automatic Punching Machine Industrial
